V-DrillGuides


These award-winning V-DrillGuides by Big Gator Tools will improve your drilling ability by accurately guiding your aim. Get yours today to achieve a perfect-quality finish on every project or quick fix you complete — effortlessly.

About the V-DrillGuides

  • Designed for use on flat surfaces, round parts, and corners, their 90-degree "V-groove" design allows perpendicular alignment on round and cornered material.

  • They have a precision ground base to assure stability and accurate perpendicular alignment of drill bits on flat surfaces.

  • Made from durable nickel alloyed steel and with a natural steel finish, they offer stability and accuracy with every use.

  • There is a Lifetime Warranty on every guide.

  • The tools are 100% American-made quality.

  • They are pocket-sized and portable.

Screenshot 2019-06-30 at 11.09.04.png

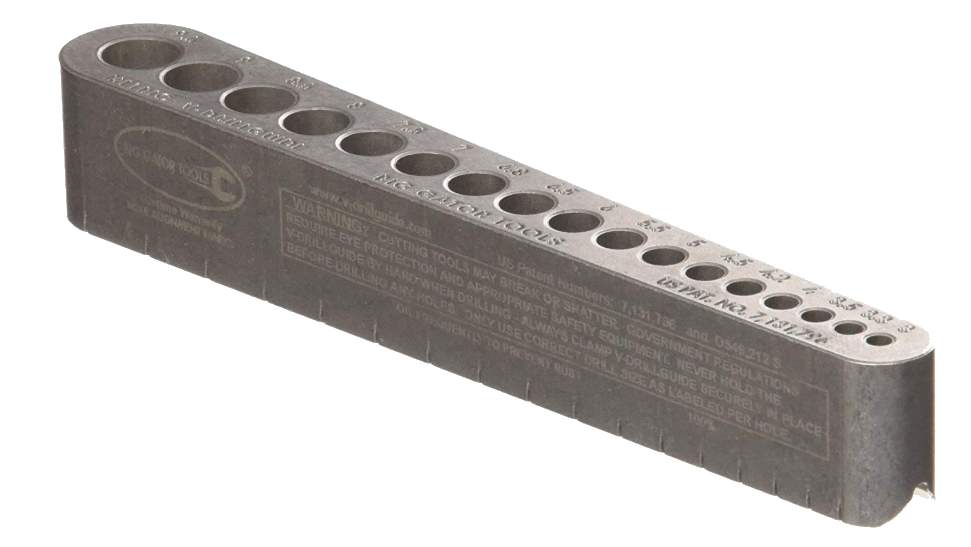

The Metric V-DrillGuide

Full product name: MDG1000NP V-DrillGuide

Holes: 17

Measurements: 3mm, 3.3mm, 3.5mm, 4mm, 4.2mm, 4.5mm, 5mm, 5.5mm, 6mm, 6.5mm, 6.8mm, 7mm, 7.5mm, 8mm, 8.5mm, 9mm, 9.5mm

Price: Available via Amazon for £28.99

Screenshot 2019-06-30 at 11.11.10 (1).png

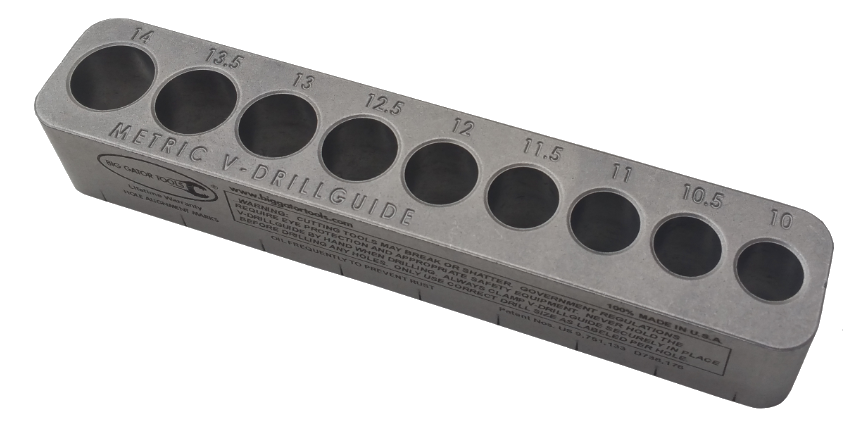

The Large Metric V-DrillGuide

Full product name: MDG2000DNP V-DrillGuide

Holes: 9

Measurements: 10mm, 10.5mm, 11mm, 11.5mm, 12mm, 12.5mm, 13mm, 13.5mm, 14mm

Price: Available via Amazon for £29.99

Screenshot 2019-07-03 at 19.22.55.png

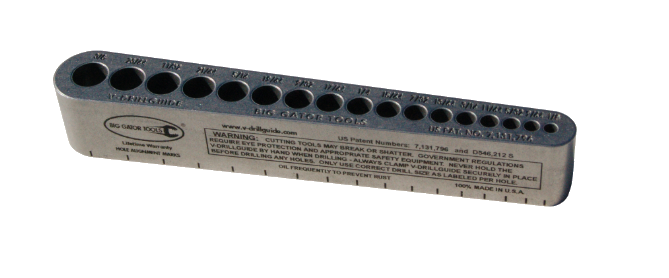

The Standard (Imperial) V-DrillGuide

Full product name: STD1000DGNP V-DrillGuide

Holes: 17

Measurements: 1/8", 9/64", 5/32", 11/64", 3/16", 13/64", 7/32", 15/64", 1/4", 17/64", 9/32", 19/64", 5/16", 21/64", 11/32", 23/64", 3/8"

Price: Available via Amazon for £28.99

Screenshot 2019-07-03 at 19.18.55.png

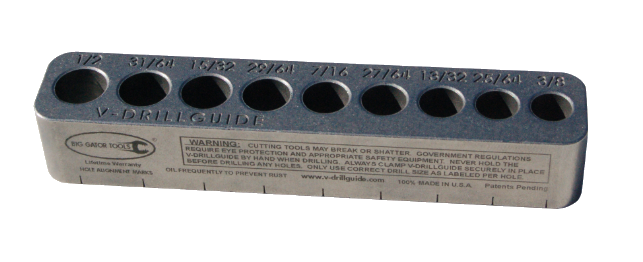

The Large Standard (Imperial) V-DrillGuide

Full product name: STD2000DGNP V-DrillGuide

Holes: 9

Measurements: 3/8", 25/64", 13/32", 27/64", 7/16", 29/64", 15/32", 31/64", 1/2"

Price: Available via Amazon for £29.99

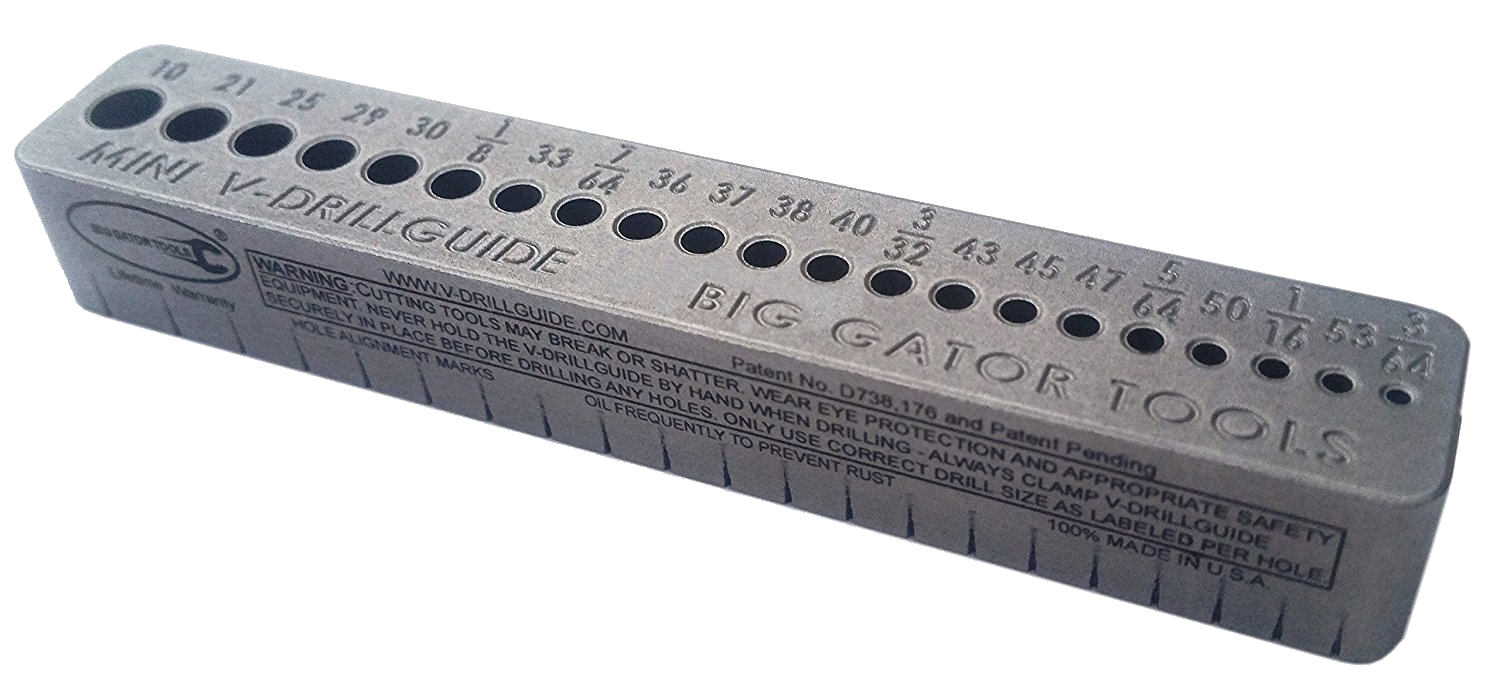

The Mini Standard (Imperial) V-DrillGuide

Full product name: SDGMINI V-DrillGuide

Holes: 21

Measurements: 10, 21, 25, 29, 30, 1/8", 33, 7/64", 36, 37, 38, 40, 3/32", 43, 45, 47, 5/64", 50, 1/16", 53, 3/64"

Price: Available via Amazon for £28.99
